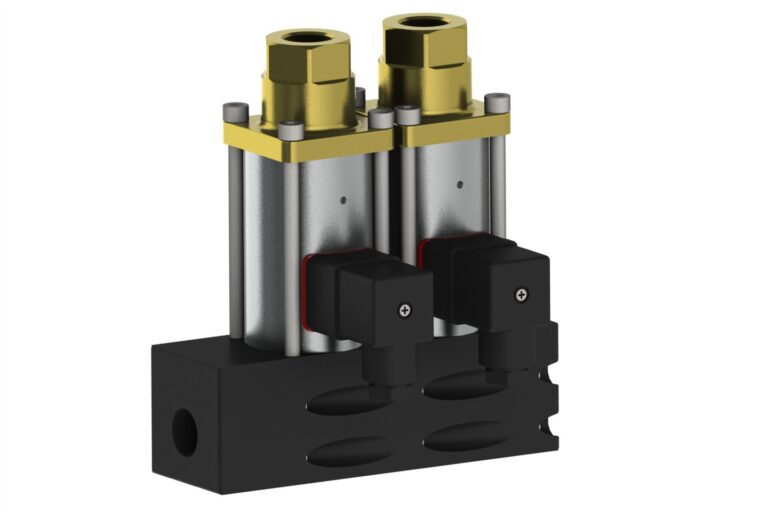

272-X

design

2/2-way

type of operation

directly controlled

nominal diameter

10.0 mm - 32.0 mm

pressure range

0.00 - 100.0 bar (see table)

Kv value

2.5 - 20.0 m³/h

housing material

Aluminum, brass

sealing material

Sealing material, static

FKM

Dynamic sealing material

PTFE

seat seal

FKM, PTFE

screen material

mesh size

opening pressure

Ambient temperature

-10 to +50°C

Temperature Medium

-10 to +100°C

connection

G1, G1 1/2, G1 1/4, G1/2, G1/4, G3/4, G3/8

Electrical connection

Device socket according to DIN EN 175301-803 Type A, for AC operation with integrated rectifier

connection voltage

230V 50Hz, 24V DC, Special voltages

voltage tolerance

± 10%

power consumption

see detailed table

duty cycle

100% ED

degree of protection

IP 65 with mounted device socket

installation position

any

Tables/charts

Type	DN [mm]	Pressure [bar]	connection	Kv value [m³/h]	power consumption [W]		weight [kg]
					24V DC	230V 50Hz
272-X	10	0–100	G1/4; G3/8; G1/2	2,5	44	53	1,7
272-X	15	0–100	G3/8; G1/2; G3/4	5,2	50	55	3,6
272-X	20	0–100	G1/2; G3/4; G1	7,0	53	59	5,4
272-X	25	0–100	G3/4; G1; G1 1/4	12,3	77	85	7,1
272-X	32	0–100	G1; G1 1/4; G1 1/2	20,0	73	76	12,6

Connection left/right	10		G1/2; G3/4; G1
Connection left/right	15		G1/2; G3/4; G1
Connection left/right	20		G1/2; G3/4; G1; G1 1/4
Connection left/right	25		G1; G1 1/4; G1 1/2
Connection left/right	32		G1 1/4; G1 1/2; G2
